Color
Natural
Orientation
Right-Hand
Product Name

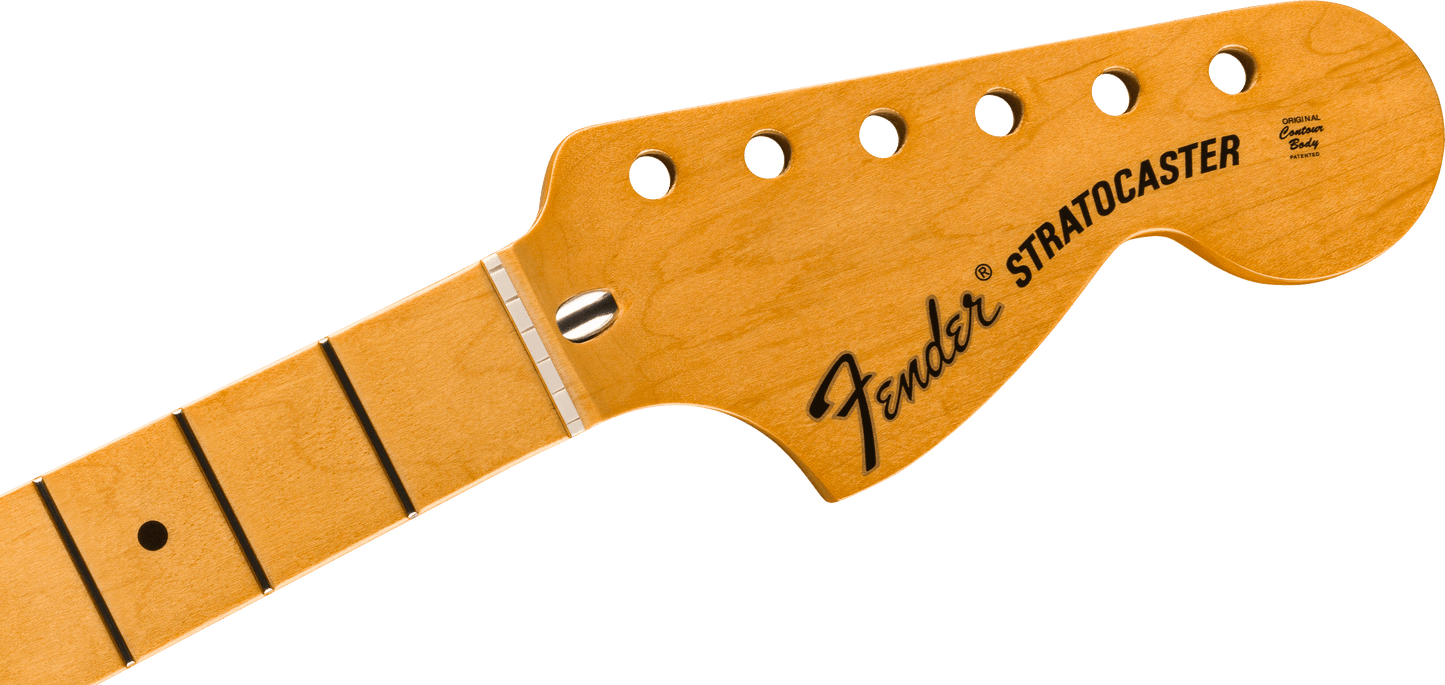

Vintera II 70’s Stratocaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Series
Fender® Parts
Vintera® II 70’s Stratocaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Regular price
425,00 €
Regular price
425,00 €
Sale price
Unit price
per
inc. VAT*
Vintera® II 70’s Stratocaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Vintera® II 70’s Stratocaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Model #:
0999723921
Regular price
425,00 €
Regular price
425,00 €
Sale price
Unit price
per
inc. VAT*
- Maple neck with ‘70’s “U” Shape
- Maple fingerboard with 7.25" radius
- 21 vintage tall frets
- Pre-slotted synthetic bone nut
- Bullet truss rod
- Six tuning machine holes designed to fit 70’s vintage-style two-screw-mount tuning machines
Couldn't load pickup availability
Details
Summary
Overview
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Vintera® II Stratocaster® neck features a "U" shape based on the classic '70s profile and offers a remarkably comfy feel. A 7.25" radius fingerboard with vintage-tall frets provides vintage comfort with ample room for big bends and expressive vibrato. Although this neck features a 3-bolt design typical of '70s Strats, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck with ‘70’s “U” Shape
- Maple fingerboard with 7.25" radius
- 21 vintage tall frets
- Pre-slotted synthetic bone nut
- Bullet truss rod
- Six tuning machine holes designed to fit 70’s vintage-style two-screw-mount tuning machines
Specs
General
Hardware
Tuner Mounting Config
'70s Vintage-Style 2-Screw
Measurements
Fret Size
Vintage Tall
Fret Wire Dimensions
0.083" (H) x 0.045" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Binding
None
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3 or 4-Bolt Configurable (Only two pilot holes drilled)
Neck Shape
'70s "U"
Neck Thickness
1st Fret - .835" (21.21 mm), 12th Fret - .900" (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
